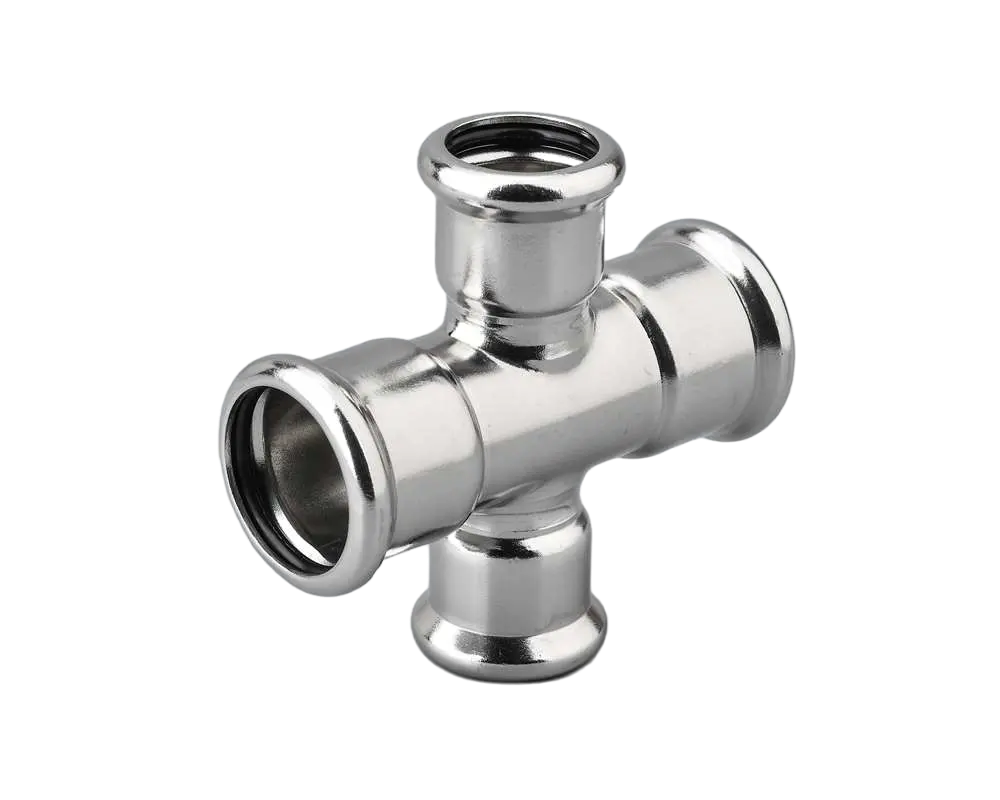

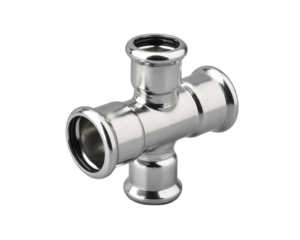

Cross Tee
For Cross pipeline, with four way outlets
Max Working Pressure
PN16 / 232psi
Working Temperature
-20°C ~ +80°C
| Nominal Diameter | Outer Diameter | Wall Thickness | Unit Weight | Size A | Size B | Article Number |
|---|---|---|---|---|---|---|
| 15 | 15 | 1.0 | 20 | 55 | 77 | |
| 18 | 18 | 1.0 | 20 | |||
| 22 | 22 | 1.0 | ||||
| 28 | 28 | 1.5 | ||||
| 35 | 35 | 1.5 | ||||
| 42 | 42 | 1.5 | ||||
| 54 | 54 | 1.5 | ||||
| 76.1 | 76.1 | 2.0 | ||||
| 88.9 | 88.9 | 2.0 | ||||
| 108 | 108 | 2.0 | ||||
| 139.7 | 139.7 | 2.5 | ||||
| 168.3 | 168.3 | 2.6 |
