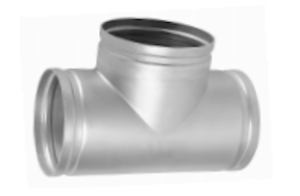

Grooved Equal Tee
A grooved equal tee for a branch at the same nominal size as the main run. The core schedule covers DN125 to DN300.
- Product group
- Grooved fittings
- Catalogue options
- 5 part numbers
- Material / specification
- SS304 listed; 316L on enquiry
- Catalogue reference
- 2026 · page 25
Select this product for your connection.
Define the branch orientation and installation clearance. Confirm all three pipe outside diameters and compatible grooved joint components before ordering.
Order by the complete part number. Quantities, availability and delivery details are confirmed in the quotation.
What to confirm
- Main-run and branch nominal size
- Pipe outside diameter and groove geometry
- Coupling and gasket requirements for all ports
Specifications & ordering codes.
Choose a listed part number and add the required quantity to your enquiry. You can combine products from different detail pages before submitting.
| Part number | Catalogue size / connection | Weight (g) | Quantity | Enquiry |
|---|---|---|---|---|
| G-T1E0000 | DN125 | 2600 | ||
| G-T1W0000 | DN150 | 3150 | ||
| G-T2B0000 | DN200 | 5880 | ||
| G-T2W0000 | DN250 | 11650 | ||
| G-T3B0000 | DN300 | 16000 |
Size and connection labels follow the catalogue. Confirm the complete mating dimensions and interface standard. A dash indicates that a weight was not supplied. Prices are provided in your quotation.
The detail behind the part.
Request the drawing and applicable installation information for your selected part number.
Drawings & installation
Provide the part number, size and the dimensions or installation details you need to confirm. Include the mating component or equipment model where relevant.
Request technical information →Application & document scope
For pressure-containing products, confirm the medium, pressure, temperature, seal and complete joint specification. Product approvals apply only to the manufacturer, brand, material, sizes and configurations named in the document.
Request applicable documents →Have a larger project schedule?
Add the products you know, then include the application and destination in one enquiry.
